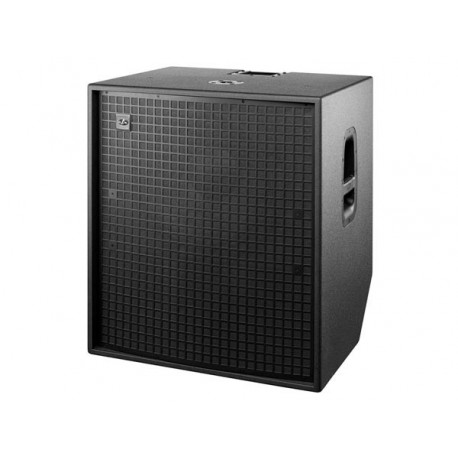

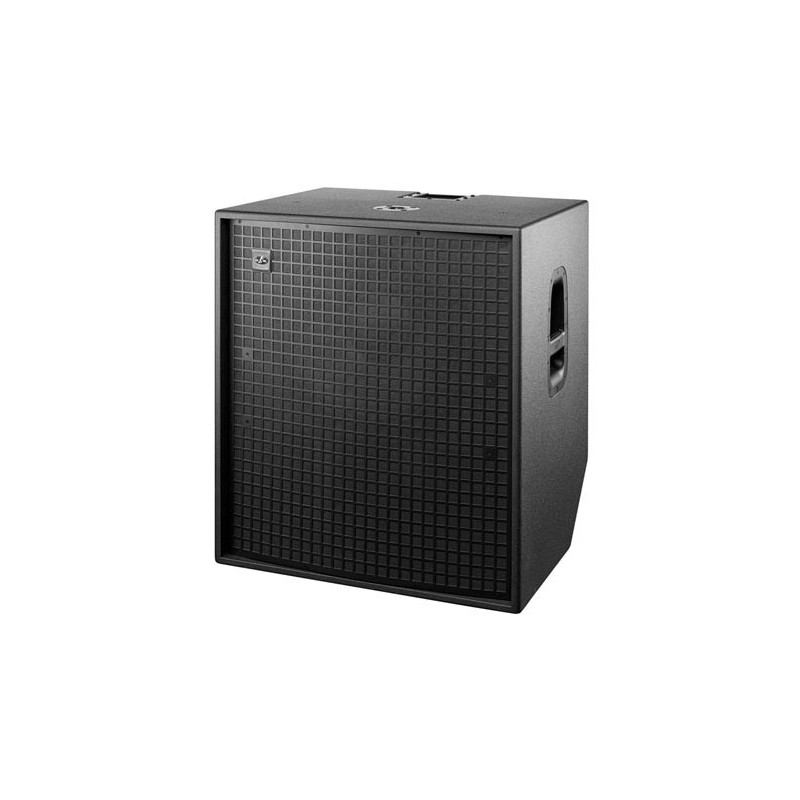

POWERED SUBWOOFER SYSTEM 1 x 18 - 1600 W CLASS D AMPLIFIER

DESCRIPTION :

The Action 118A is a powered horn-bass subwoofer system designed to provide extended bass response for the Action full-range cabinets. A powerful 3200 Wpeak Class D amplifier drives a D.A.S. 18LX long excursion bass loudspeaker incorporating a 4? voice coil for high power handling and output. The Action 118A is powered by a Class D amplifier with switch mode power supply (SMPS), digital signal processing (DSP) and a 3200 Wpeak power. The amplifier has a unique EQ switch which allows the user to select a Deep subbass response or a Loud bass response. The system includes two balanced inputs with stereo filtered output connections for satellite systems. The variable crossover ranges from 80 Hz-125 Hz and can be defeated to offer stereo "loop thru" connections. A gain control and polarity reverse feature increase user control over the system.

CARACTERISTIQUES :

• powered horn-bass subwoofer system
• high output 18? loudspeaker
• polarity switch
• commutateur d'annulation pour une sortie filtrée
• variable 80 -125 Hz high-pass filter
• contrôle de gain

SPECIFICATIONS :

• AC requirements:
  • 115 V, 5.4 A, 50 Hz/60 Hz
  • 230 V, 2.7 A, 50 Hz/60 Hz
• puissance d'amplification LF nominale: 3200 Wpeak,1600 Wcontinuous (Class D)
• gamme de fréquences:
  • loud: 50 Hz - 125 Hz
  • deep: 45 Hz -125 Hz
• crête SPL nominale à 1 m: 137 dB
• crossover interne: variable LPF 80 Hz-125 Hz
• connecteurs:
  • entrée: 2 x female XLR
  • thru: 2 x male XLR
  • entrée CA: powerCON
  • sortie CA: powerCON
• matériau du caisson: birch plywood
• color / finish: black ISO-flex Paint
• dimensions:
  • 79.1 x 69.0 x 56.7 cm
  • 1.14 x 27.17 x 22.32 in
• poids: 55 Kg (121 lb)
