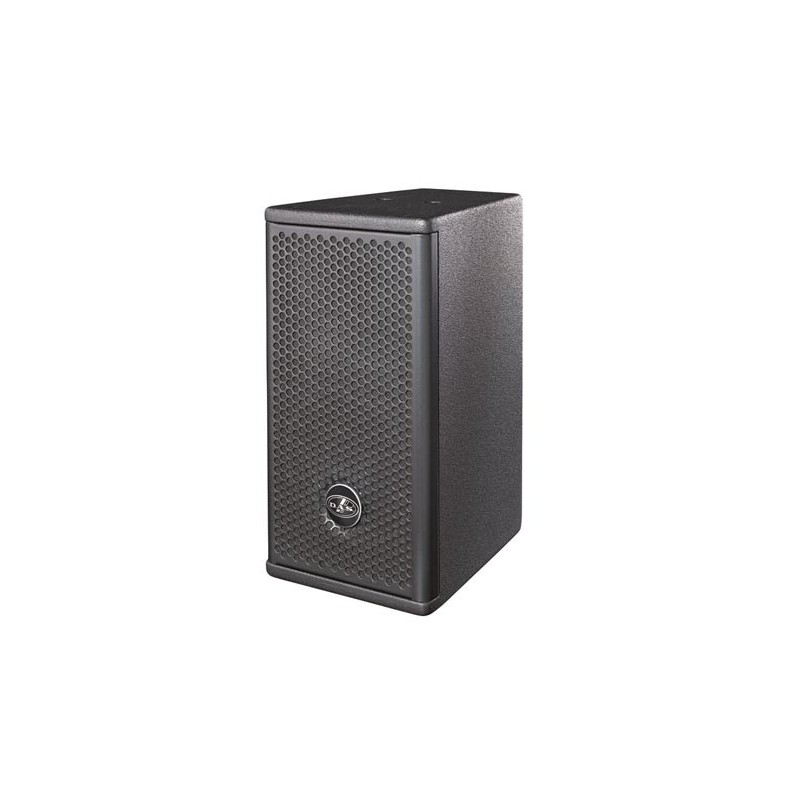

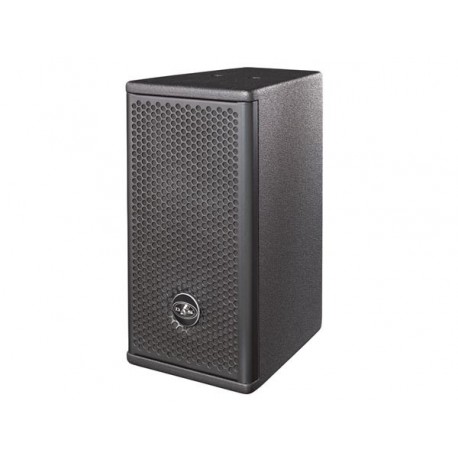

ARTEC-506 - 2-way passive system. 200 Wrms

DESCRIPTION :

The ARTEC-506 employs a single 6P woofer for low frequency reproduction. The M-34 compression driver provides brilliant highs. The birch plywood cabinet construction offers an ultra-compact design which is available in black or white. Precise coverage and control in either the horizontal and vertical position is possible thanks to the symmetrical 80° horn geometry. The cabinets can be permanently installed by way of the optional "U" brackets and accessories which allow for multiple configurations. Four threaded fixing points for the AXW-1 adjustable wall mount and stand mounting accessories augment adaptability. A robust steel grille internally lined with acoustically transparent filter cloth protects components.

CARACTERISTIQUES :

• single 6" loudspeaker
• M-34 compression driver
• vertical or horizontal positioning
• threaded fixing points for wall mounts
• pole mount accessories

SPECIFICATIONS :

• RMS power handling: 200 W
• peak power handling: 800 W
• frequency range (-10 dB): 65 Hz - 20 kHz
• nominal impedance: 8 &Omega-
• on-axis sensitivity 1 W / 1 m: 88.5 dB SPL
• rated peak SPL at 1 m: 117.5 dB
• dispersion: 80º x 80º
• enclosure material: birch plywood
• colour/finish: black or white/paint
• connecteurs: 2 x NL4 speakON
• dimensions:
  • 38 x 19.5 x 25.5 cm
  • 15 x 7.7 x 10 in
• weight: 7 kg (15.4 lb)
