12 . TWO-WAY MULTIPURPOSE SELF POWERED SYSTEM 600 W CONT. POWER CLASS D POWER AMPLIFIER 1 X 12 1 NEODYMIUM

DESCRIPTION :

The Avant series incorporates an impressive battery of high tech features that take powered portable systems to a new level of performance. The latest in Class D power amplification, digital signal processing and optimized D.A.S. components have been combined with enclosures designed for ease of transportation and road worthiness.

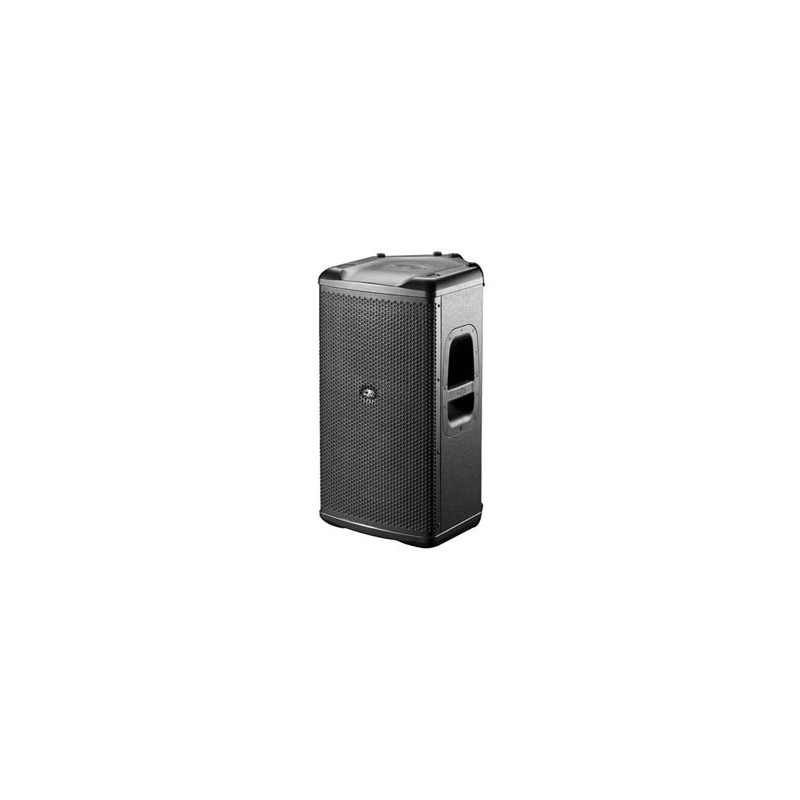

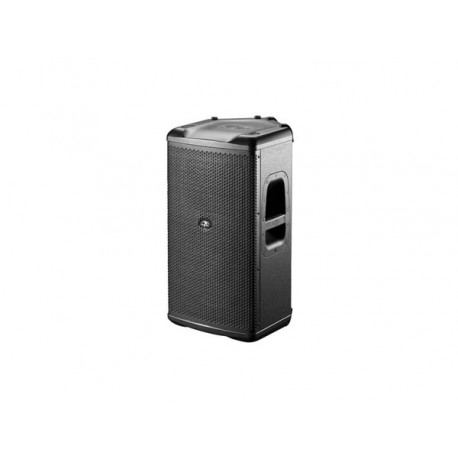

The Avant 12A offers a multi-angle enclosure which allows it to be used in stage monitor applications as well as a compact P.A. system.
The 600 W Class D amplifier provides extended bandwith, improved dynamic range and exceptionally low distortion. This makes the Avant series one of the best sounding systems on the market. After all, isn't quality sound what it's all about?
The 12AV4 loudspeaker designed and built by D.A.S. provides accurate low frequency reproduction. High frequencies are handled by the M-50N compression driver which uses a neodymium magnet structure and 2" titanium diaphragm-features hard to find on other systems in this market segment.

CARACTERISTIQUES :

• Compact multi-purpose system with monitor position
• Ultra lightweight 3rd generation Class D amplifier
• Switch-mode power supply
• Reduced size and weight
• Pole mount socket
• Rigging points

SPECIFICATIONS :

• Nominal LF Amplifier Power: 500 W
• Nominal HF Amplifier Power: 100 W
• Frequency Range (-10 dB): 60 Hz-20 kHz (EQ Main)
• Rated Peak SPL at 1 m: 133 dB
• Dispersion: 80ºH x 50ºV rotatable horn
• Enclosure Material: Plywood
• Color/Finish: Black/Paint
• connecteurs:
  • Input: Female XLR-Jack combo
  • Loop Thru: XLR
  • AC Input: Male IEC
• AC Requirements:
  • 115 V, 50/60 Hz
  • 230 V, 50/60 Hz
• Current Draw (1/3 power @ 230 V): 1.7 A
• Dimensions:
  • 71.3 x 36.2 x 39.7 cm
  • 28 x 14.3 x 15.6 in
• Weight: 22 kg (48 lb)
