WR-8826TCX

DESCRIPTION :

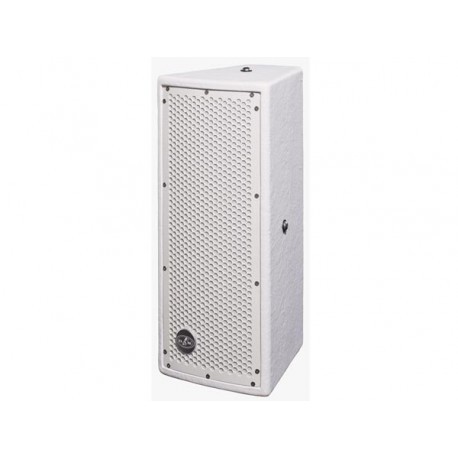

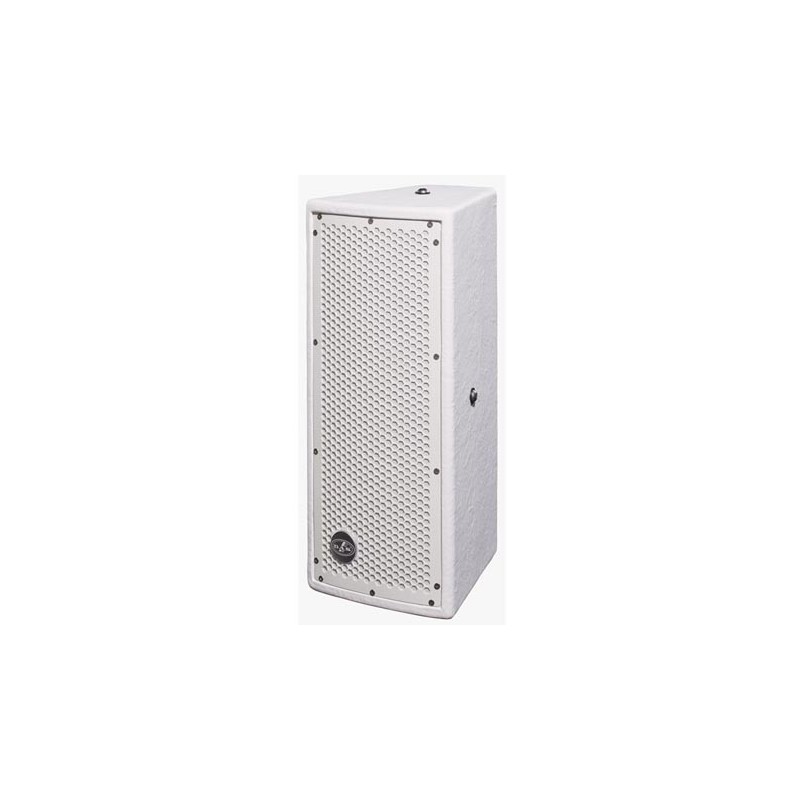

The WR-8826T employs twin 6B woofers for low frequency reproduction. A 1" annular diaphragm compression driver provides brilliant highs. The birch plywood cabinet construction offers an ultra-compact design which is available in black or white.
The WR-8826T offers two exposure ratings: 'covered exposure' (CX) for applications where cabinets are covered or protected, and 'direct exposure' (DX) where cabinets are unprotected and directly exposed to the environment. The CX versions are protected with a thick Iso-Flex coating on both the exterior and interior surfaces. The DX versions augment the protection rating by employing a fiberglass exterior and a gel coat sealed interior. Stainless steel fittings and mounting hardware are offered on both versions.
The "T" version is equipped with a 50 W line transformer for use in 100 V distributed systems.

CARACTERISTIQUES :

• system for outdoor installation market
• twin 6" loudspeaker
• 1" annular diaphragm compression driver
• two exposure ratings: covered exposure (CX) and direct exposure (DX)
• factory installed 50 W/100 V line transformer

SPECIFICATIONS :

• RMS power handling: 200 W
• peak power handling: 800 W
• frequency range (-10 dB): 70 Hz - 22 kHz
• on-axis sensitivity 1 W / 1 m: 93 dB SPL
• rated peak SPL at 1 m: 122 dB
• transformer taps:
  • 100 W (100 V)
  • 50 W (70 V)
• dispersion: 80º x 80º
• enclosure material: birch plywood
• colour/finish:
  • CX-Black (white optional)
  • DX-Gray Pantone 420C
  • (black optional)
• connecteurs: covered barrier strip
• dimensions:
  • 54.5 x 22.6 x 26.7 cm
  • 21.5 x 8.9 x 10.5 in
• weight: 12 kg (26.5 lb)
