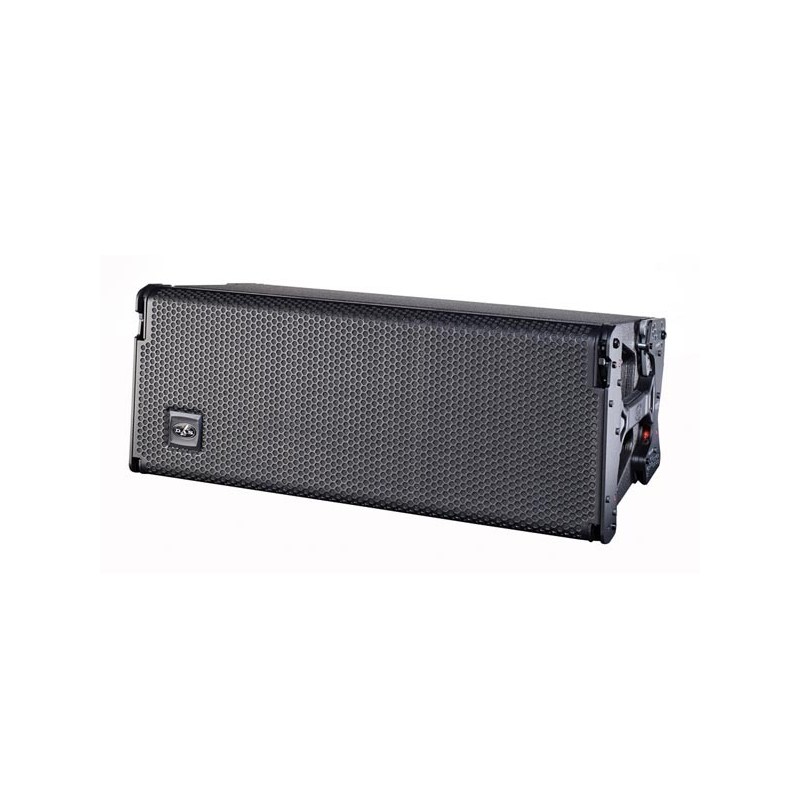

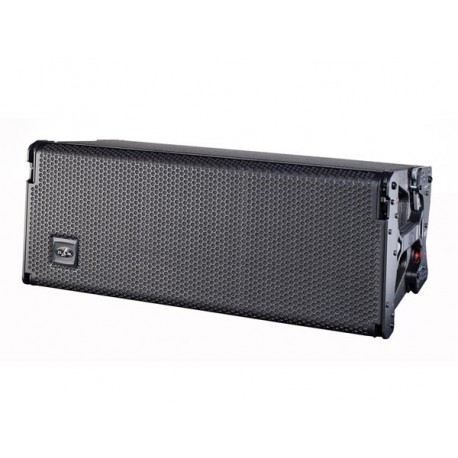

12 . TWO-WAY MULTIPURPOSE SELF POWERED SYSTEM

DESCRIPTION :

The Event 210A Line is a three-way powered line array in a double 10" configuration providing a wider frequency range. The D.A.S. loudspeaker unit has been teamed up with a single M-75 compression driver and purpose-designed injected aluminum high frequency waveguide. The Event 210A line array is powered by a three channel Class D amplifier which provides 360 Wpeak per channel. The amp's rear panel includes quality Neutrik® XLR and powerCON connectors, status LEDS to facilitate setup and D.A.S.'s Easy-DSP™ interface which simplifies preset selection for the number of units and throw depth.

CARACTERISTIQUES :

• powered 3-way system
• light-weight Class D amplifier topology
• high-end DSP chipsets
• easy-DSP™ Interface
• quality Neutrik® connectors
• top grade Birch cabinet construction
• durable ISO-flex finish
• robust "quick-rig" professional rigging hardware
• proprietary injected aluminium HF waveguide (not plastic)
• D.A.S. M-75 compression driver and cone transducers

SPECIFICATIONS :

• puissance d'amplification HF nominale: 360 Wpeak
• nominal MF amplifier power: 360 Wpeak
• puissance d'amplification LF nominale: 360 Wpeak
• plage de fréquence (-10dB): 75 Hz -20 kHz
• crête SPL nominale à 1 m: 132 dB
• horizontal coverage (-6 dB): 90º nominal
• vertical coverage: splay dependent
• matériau du caisson: birch plywood
• color/finish: black ISO-flex paint
• connecteurs:
  • entrée: female XLR
  • loop thru: male XLR
  • entrée CA: powerCON
  • sortie CA: powerCON
• exigences en CA:
  • 115 V, 3.0A, 50 Hz/60 Hz
  • 230 V, 1.5A, 50 Hz/60 Hz
• dimensions: 27 x 67 x 36.6 cm
• weight: 30 Kg
