2 x 18 . SUB

DESCRIPTION :

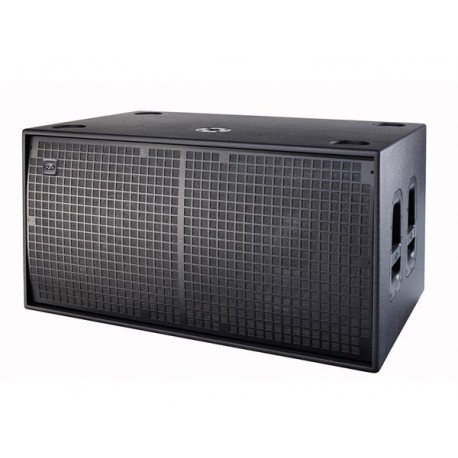

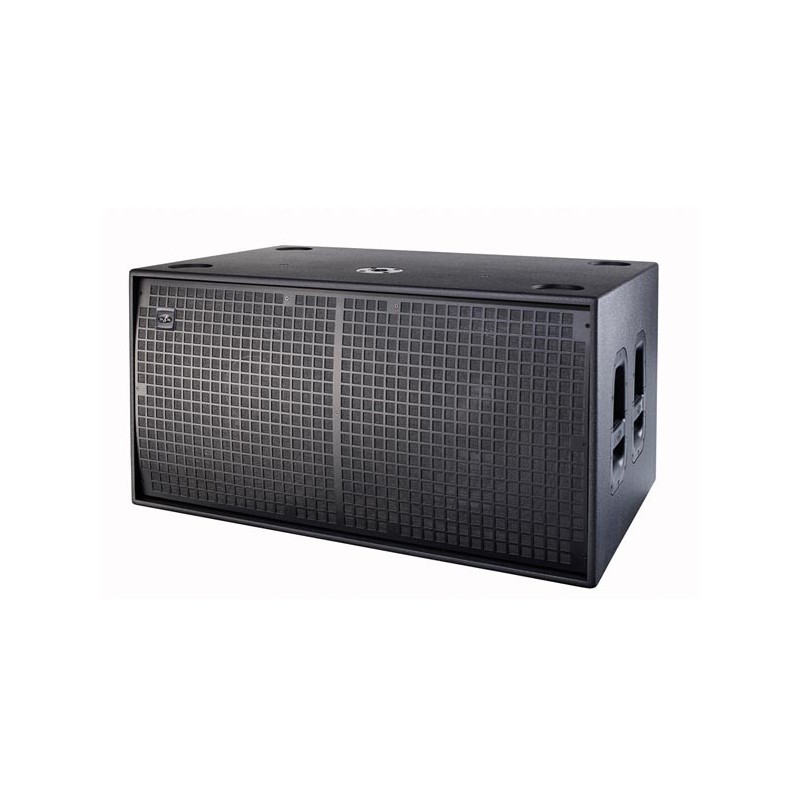

The Event 218A dual 18" powered subwoofer makes use of one of D.A.S.'s most acclaimed loudspeakers, the LX series long excursion transducers which were introduced in the high-level LX-218. The enclosure is designed for horizontal use, built using quality Birch plywood, finished with the ISO-flex coating and has a pole mount socket on the upper panel.
The power amplifier provides 3600 Wpeak power and offers features found on the more expensive LX subwoofers such as the Cardioid Preset mode switch which offers specific signal treatment for easy set-up of pairs of systems in cardioid subwoofer applications. The system includes two balanced inputs (A-B) with stereo HPF (100 Hz) filtered output connections for satellite systems. Defeating the HPF filter offers stereo "loop thru" connections. The variable LPF crossover ranges from 100 Hz-160 Hz. A gain control and polarity reverse feature increase user control over the system.

CARACTERISTIQUES :

• oowered high performance subwoofer system
• 3600 Wpeak Class "D" amplifier
• two 18LX loudspeakers with 4? voice coils
• configuration type bass-reflex
• durable ISO-flex finish.

SPECIFICATIONS :

• puissance d'amplification LF nominale: 3600 Wpeak-1800 Wcontinuous
• plage de fréquence (-10dB): 32 Hz - 160 Hz
• crête SPL nominale à 1 m: 140 dB
• crossover interne: 100 Hz
• connecteurs:
  • entrée: female XLR
  • loop thru: male XLR
  • entrée CA: powerCON
  • sortie CA: powerCON
• exigences en CA:
  • 115 V, 6.0A, 50 Hz/60 Hz
  • 230 V, 3.0A, 50 Hz/60 Hz
• courant (1/3 de la puissance @ 230 V): 1.5A
• matériau du caisson: birch plywood
• color/finish: black ISO-flex paint
• dimensions: 54 x 106 x 67 cm
• weight: 80 Kg
