2 X 18 SUB

DESCRIPTION :

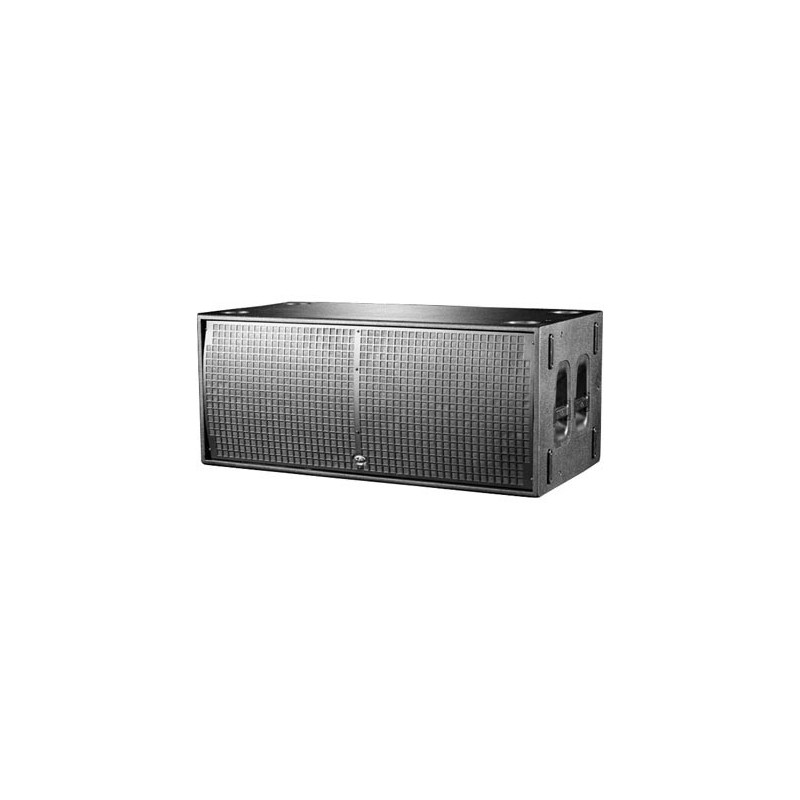

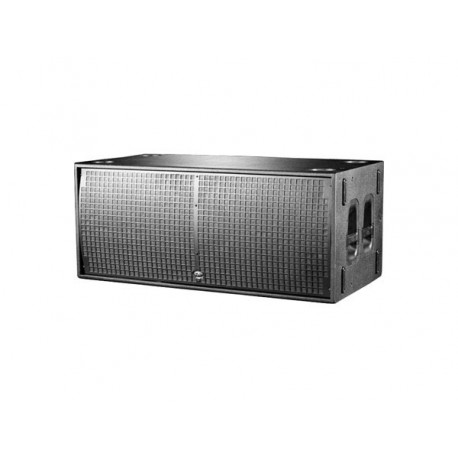

The LX-218CA is a powered subwoofer system designed to provide outstanding performance in terms of output power, bandwidth extension and distortion. The LX-218CA incorporates the 18LXN long excursion cone transducer. The newly developed 18LXN loudspeakers are a significant improvement over their predecessors offering increased power handling, reduced distortion and power compression.
The LX-218CA incorporates a new high power (2400 W) and high-volt­age amplifier design providing ample headroom and accuracy. The amplifier uses the latest Class D design. The automatic dual voltage selector ensures a "no hassle" mains setup anywhere in the world. The amplifier incorporates a selectable preset allowing users to arrange cardioid configurations of 2 or 3 units.
The subwoofer can be stacked vertically on the PL-218CS dolly facilitating transport in touring applications of up to 3 units. For the transport of individual units, an optional rear casters kit (KITW-100) is available.
The LX-218CA can be upgraded to the "R" version by way of the optional rigging hardware kit (KITR-LX218C) which includes the captive rigging system, fasteners and 8 mm quick release safety pins needed for one cabinet.

CARACTERISTIQUES :

• Powered high performance subwoofer system
• 2400 W Class "D" amplifier
• Two 18LXN long-excursion loudspeakers
• Front loaded bass-reflex configuration

SPECIFICATIONS :

• Nominal LF Amplifier Power: 2400 W
• Frequency Range (-10 dB): 28 Hz - 100 Hz
• Rated Peak SPL at 1 m: 142 dB
• Enclosure Material: Birch Plywood
• Color/Finish: Black/Iso-Flex Paint
• connecteurs:
  • entrée: Female XLR
  • Loop Thru: Male XLR
  • AC Input: powerCON
  • AC Output: powerCON
• AC Requirements:
  • Universal Mains 85-250 V
  • 50 Hz/60 Hz
• Current Draw (1/3 power @ 230 V): 3.1 A
• Dimensions:
  • 55 x 128 x 63.2 cm
  • 22 x 51 x 24.9 in
• Weight: 80.5 kg (177.1 lb)
