2 x 15 SUB

DESCRIPTION :

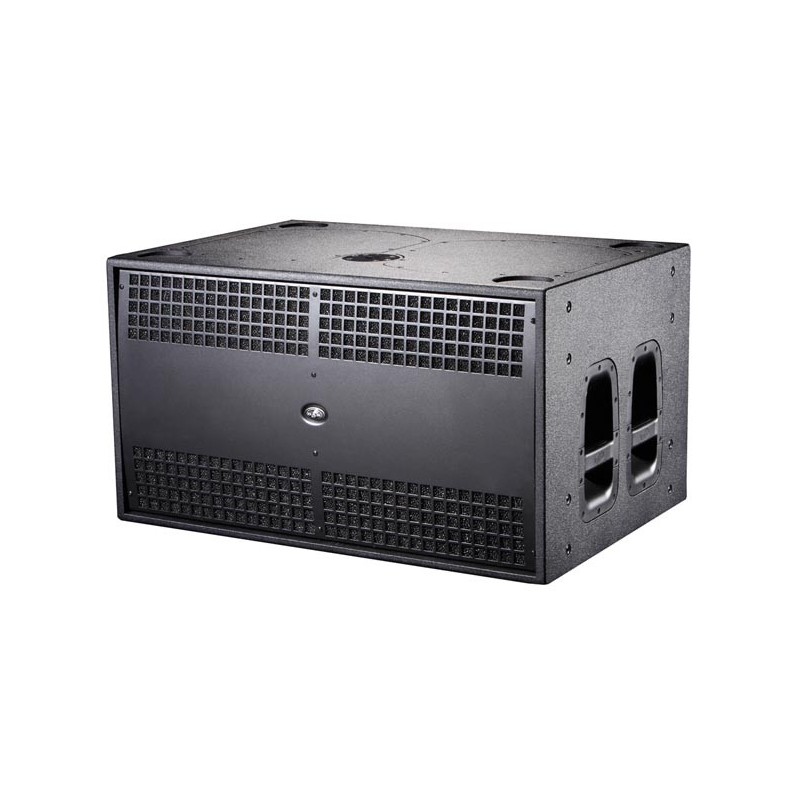

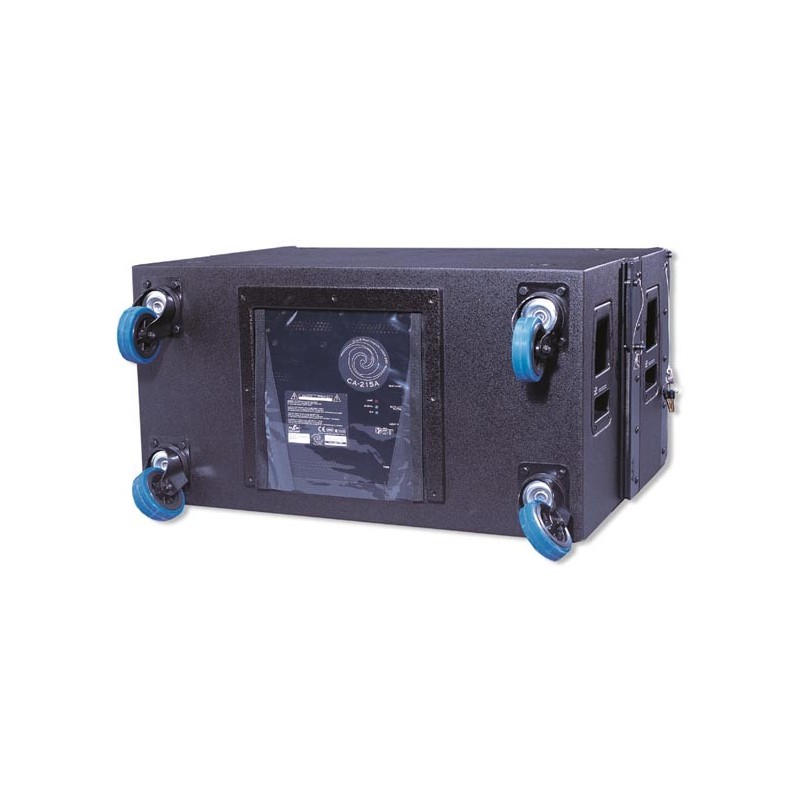

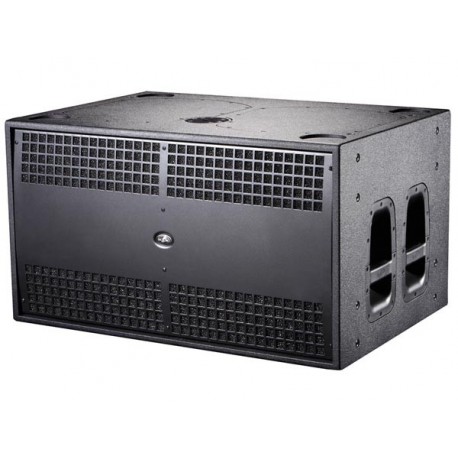

The LX-215A is a powered dual 15" 6th order band-pass subwoofer designed for impressive low frequency performance. The high-order band-pass design provides excellent loudspeaker loading characteristics for an impressive combination of punch, transient response and low-frequency extension.
The LX-215A incorporates a 1800 W, Class D amplifier with switch mode power supply (SMPS) and digital signal processing (DSP). The amplifier has a Cardioid Preset mode switch which offers specific signal treatment for easy set-up in cardioid subwoofer applications. The system includes two balanced inputs (A-B) with stereo filtered output connections for satellite systems. The variable crossover ranges from 100 Hz - 160 Hz and can be defeated to offer stereo "loop-through" connections. A gain control and polarity reverse feature increase user control over the system. The upper panel includes a pole mount socket for use with satellite systems.

CARACTERISTIQUES :

• powered band-pass subwoofer system
• 1800 W Class D amplifier
• "Cardioid Preset" button
• two 15LXN long-excursion loudspeakers
• 6th order band-pass configuration

SPECIFICATIONS :

• nominal LF amplifier power: 1800 W (Class D)
• frequency range (-10 dB): 45 Hz - 138 Hz
• rated peak SPL at 1 m: 140 dB
• enclosure material: birch plywood
• colour/finish: black or white/Iso-Flex paint
• connecteurs:
  • entrée: 2 x female XLR
  • loop-through: 2 x male XLR
  • AC input: powerCON
  • AC output: powerCON
• AC requirements:
  • 115 V, 50 Hz/60 Hz
  • 230 V, 50 Hz/60 Hz
• current draw (1/3 power @ 230 V): 3 A
• dimensions:
  • 50.5 x 90.2 x 63.2 cm
  • 19.9 x 35.5 x 24.9 in
• weight: 63 kg (138.6 lb)
