SYSTEME LINE ARRAY COMPACT A 2 VOIES. 1 x 8 MOTEUR

DESCRIPTION :

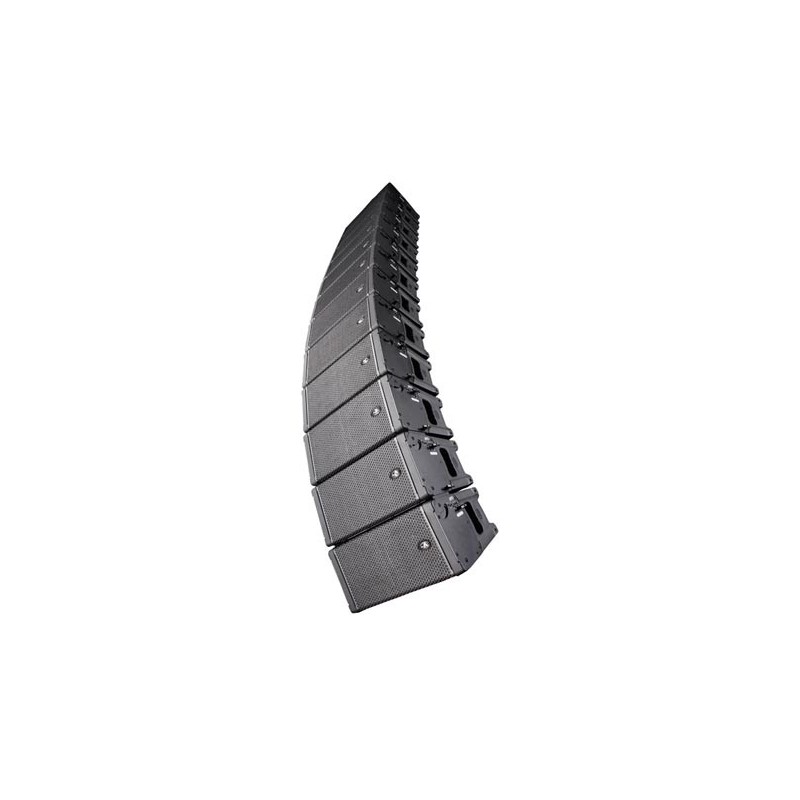

The new AERO-8A was designed to provide audio professionals with exceptional line array performance from an ultra-compact enclosure. Measuring only 24.5 x 52.6 x 35.5 cm (9.6 x 20.7 x 14 in), the easy to handle units can be configured into arrays that are both powerful and predictable.
Equipped with the latest in Class D power amplification and digital signal processing, the amplifier offers 250 W for the low frequency loudspeaker and 100 W for the high frequency driver. A two position HF EQ compensation switch which adjusts the high frequency response for arrays of 4 or 8 or more units is located on the rear panel. The AERO-8A incorporates the D.A.S. 8MN, 8" low frequency transducer. The 8MN employs a 62 mm (2.5") voice coil and neodymium magnet motor assembly. High frequency reproduction relies on the exceptional characteristics of the new M-60N neodymium compression driver. Each motor system is attached to a new BPS-191 waveguide-horn assembly.
The extremely compact enclosure is manufactured using birch plywood protected with the durable Iso-Flex black paint. The AERO-8A's 5º trapezoidal shape and rear located splay angle adjusters keep the front spacing between adjacent elements the same, providing the array with a "seamless" front baffle, for improved array performance. The captive rigging system splay angles range from 0º to 10º and can be adjusted in 1º increments allowing a wide range of column curvatures to be accomplished.

CARACTERISTIQUES :

• powered ultra-compact two-way line array module
• Class D two channel amplifier 250 W LF + 100 W HF
• one 8" loudspeaker with neodymium magnet assembly
• new M-60N neodymium compression driver
• SERPIS BPS-191 high frequency plane wave generator
• captive rigging system integrated in the cabinet design

SPECIFICATIONS :

• nominal HF amplifier power: 100 W
• nominal LF amplifier power: 250 W
• frequency range (-10 dB): 95 Hz - 20 kHz
• rated peak SPL at 1 m: 128 dB
• horizontal coverage (-6 dB): 90º nominal
• vertical coverage: splay angle dependent
• enclosure material: birch plywood
• colour/finish: black or white/Iso-Flex paint
• connecteurs:
  • entrée: female XLR
  • loop-through: male XLR
  • AC input: powerCON
  • AC output: powerCON
• AC requirements:
  • 115 V, 50 Hz/60 Hz
  • 230 V, 50 Hz/60 Hz
• current draw (1/3 power @ 230 V): 0.86 A
• dimensions:
  • 24.5 x 52.6 x 35.5 cm
  • 9.6 x 20.7 x 14 in
• weight: 18 kg (39.6 lb)
